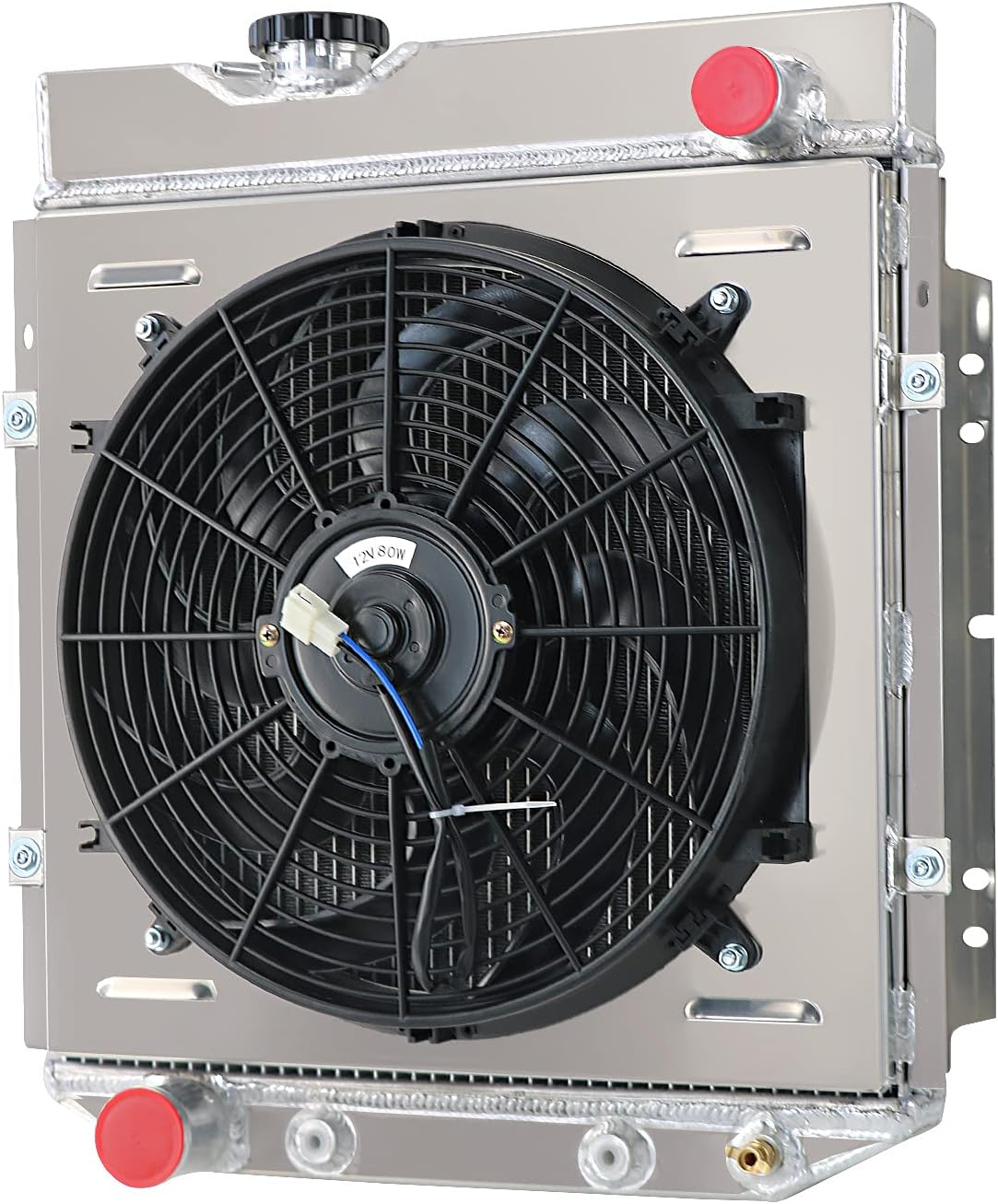

4 ROW Radiator Shroud Fan Relay For 1965-1966 Ford Mustang 5.0L Conversion V8

🔘Vehicle Fitment: For Ford Mustang 1965-1966/Ford Ranchero 1960-1965/Ford Falcon 1960-1966/Ford Econoline 1962-1965 For Mercury Comet 1961-1965 For both Automatic Transmission 🔘Radiator Configuration: Brand Name: CFOTIXAR Condition:100% New Row Count: 4 Rows Core Size: 16-1/2" H x 17" L Overall Size: 21-3/4" H x 19-5/8" L Upper Inlet: 1-1/2" Lower Outlet: 1-3/4" Transmission Cooler: ￠26×150×1/8-27NPT（T） This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase! 🔘Fan Specification: Diameter : 14'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 80W Number of Blades: 8 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 2250cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Fan Thickness: 2.64" S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 80 watt motor will keep your engine cool. 🔘Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 🔘CFOTIXAR Radiator: Key Benefits 【Built with AA5052 aircraft-grade aluminum – tougher against corrosion】 【Brazed core tech = max performance and reliability】 【2mm-thick AA5052 tanks/fittings: built to take abuse】 【CNC-machined billet aluminum fill neck – rugged, no weak spots】 【Ergonomic CNC cap with engraved detail + anodized finish】 【OE-spec fit – drops right in, no hassle】 【High-density core: 3/8" row spacing = 25% more rows than standard aluminum radiators】 【14-16 fins per inch (≈1,500 more than others) – blasts heat faster】 【30-45% more efficient than stock. Extra coolant capacity = better cooling under race-day temp spikes】 AA5052 series aluminum outperforms T-3303 significantly. AA5052 (Al-Mg alloy): good corrosion resistance, reliability, cold workability, strength. Mg-alloyed with high formability; used in aircraft fuel tanks, oil pipes, transport/ship sheet metal, hardware, electrical casings. T-3303: poor polishability, softness, scratch/corrosion prone, low heat dissipation. Long-term high-P/T operation leads to quick leakage. Yet >90% aftermarket use due to low cost/availability.>

• [Vehicle Fitment] For 1960 1961 1962 1963 1964 1965 1966 Compatible With Ford Mustang Falcon /61-65 Mercury Comet 60 61 62 63 64 65 66
• [Dimensions] Core Size: 16-1/2" H x 17" L, Overall Size: 21-3/4" H x 19-5/8" L, Upper Inlet: 1-1/2", Lower Outlet: 1-3/4", Transmission Cooler: ￠26×150×1/8-27NPT（T）
• [Feature] 4-row Downflow radiator with coolant capacity exceeding OEM specifications and heat dissipation efficiency improved by over 40%+, constructed with 2mm-thick AA5052 aluminum tanks and fittings, featuring a U-shaped fin design and 100% TIG-welded construction, and equipped with an CNC Cap Included and OEM-style brass petcock
• [Direct Replacement] Carefully crafted to exceptional OE standards for a precise fit, with radiator dimensions ensured by a CNC turret punch machine, requiring no drilling or modifications for installation; OE/OEM part numbers: DPI251,CC251,CU251,MC251
• [Ensure fitmen] Ensure a perfect match with your vehicle by entering its details in the Amazon Confirmed Fit tool provided on this page
